M3 ORANGE Series (OX-10P/S/C) Pin I/O Description

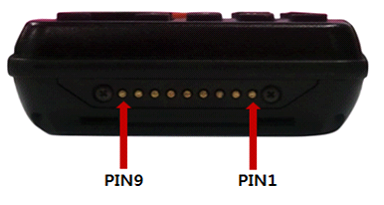

This document describes the type and usage of 9 POGO Pin connector of M3 ORANGE(OX-10) which is located at the bottom of the device.
|
No.
|
Name
|
Connect Information
|
|
1
|
USBH_DN
|
USB Host Data Negative
|
|
2
|
USBH_DP
|
USB Host Data Positive
|
|
3
|
EX_USBHP
|
USB HOST PWR
|
|
4
|
RFID_ON
|
RFID_ON
|
|
5
|
RXD
|
Serial RXD
|
|
6
|
TXD
|
Serial TXD
|
|
7
|
USB_ID
|
High for Client, Low for Host
|
|
8
|
GND
|
Power Ground
|
|
9
|
+5V
|
System Power and Charging
|
