Ring Scanner Code Type Settings

Ring Scanner Code Type Settings

You can configure RingScanner to scan only the barcode types you want.

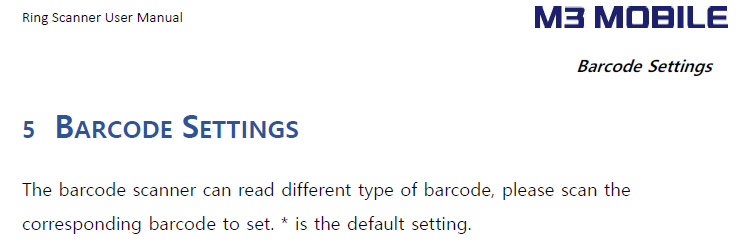

Barcodes for setting the corresponding function are in Barcode Settings in the RingScanner User Manual.

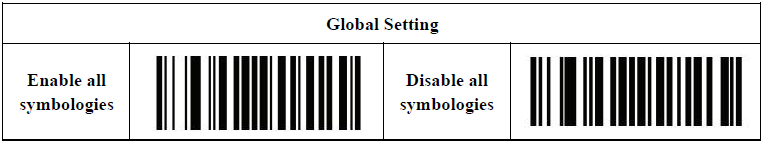

Scanning left barcode : Activate all barcode types supported by RingScanner

Scanning right barcode : Disable all barcode types supported by RingScanner

Example of Ring Scanner Code Type Settings

Please refer to RingScanner User Manual - Barcode Settings

Example) When you want to scan only the UPC-A, EAN-13 barcode type,

1 Disable all symbologies scan (not all barcode types)

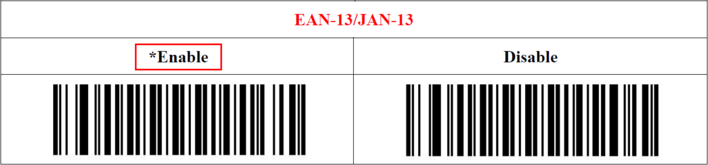

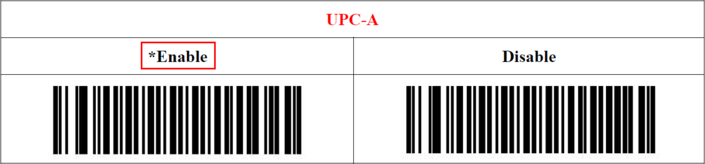

2 UPC-A Enable Barcode Scan + EAN-13 Enable Barcode Scan

3 Test for scanning UPC-A, EAN-13 barcodes and other types of barcodes to be scanned
